DIGITAL TRANSFORMATION WITH MITSUBISHI ELECTRIC – German Manufacturer of Rail-vehicle Washing Systems positions itself for the future
Less effort for demanding projects: Digital Twin, low-code, and modern automation technology make it possible. With the support of Mitsubishi Electric and the engineering firm ATINA, the German machine manufacturer BHB Waschanlagen Vertriebs GmbH built a new tram washing system that is particularly resource-efficient for Zurich's public transport company. Thanks to digital twins and low-code programming, it was put into operation with significantly reduced costs and time.
www.mitsubishielectric.com
The new tram washing system in Zurich's Oerlikon district is special in several ways. Instead of the usual two washing cars, four individually movable washing cars are used, which, thanks to automation technology from Mitsubishi Electric, enable particularly thorough cleaning results with short washing times and high energy efficiency. For BHB Waschanlagen Vertriebs GmbH, the mechanical engineering company that carried out the project and is a Mitsubishi Electric customer, this challenging project also represents a milestone in its own digital transformation. It was the first time an innovative digital twin process was used in combination with simplified low-code programming. This made it possible to plan the complex system with significantly less effort and greatly reduce commissioning times. The 20-person machine manufacturing team was supported by ATINA, a Stuttgart-based engineering firm and experienced software specialist from Mitsubishi Electric's partner network.
Low-code programming and digital twins
Increasing customer demands for flexible, networked, and resource-efficient systems—especially amid skilled labor shortages—require new digital concepts, says BHB managing director Tobias Straub. "Through Mitsubishi Electric and its Automation Network, we came into contact with the engineering firm ATINA, which has provided us with significant support in our digitalization efforts," Straub reports. "This enabled us to use a digital twin and the new low-code programming for the first time in the Zurich project."
As a pure scripting language, ATINA's low-code programming eliminates the need for hard-coded, line-by-line programming. Washing programs can be easily parameterized using Excel spreadsheets, even without in-depth programming knowledge. This saves time, reduces sources of error, and facilitates subsequent revisions. With only 200 lines of text instead of 4,000, the programs are clearer and easier for service personnel to understand. The programs created in Excel can be transferred directly to the Mitsubishi control system via a simple CSV export.
In addition to the script language, BHB used a digital twin for the first time for the Zurich project. All mechanical and electrical components of the washing system are stored there as fully functional 3D models and can be controlled by a real Mitsubishi PLC. Since the programs can be tested very accurately at the desk, commissioning on site is greatly accelerated and virtually error-free — an enormous economic advantage for everyone involved, especially in more complex projects.
Innovation meets automation
However, digital twins and low-code programming alone would not have been enough to meet high customer requirements. That is why the software innovations are based on Mitsubishi Electric's reliable hardware. At the heart of the control system is the compact MELSEC FX5U-64MR/DS PLC. "Our hardware is exceptionally robust and backward compatible across generations," explains Michael Brandecker, a sales engineer at Mitsubishi Electric. "This enables machine builders, such as BHB, to offer their customers products whose components can be replaced after many years without costly reprogramming."
Additionally, Mitsubishi Electric drives ensure efficiency during operation. The FR-E800 series of frequency inverters enables flexible motor control, reducing energy and water consumption and contributing to economical and resource-efficient operation of the plant.
Future-proof machine building requires digital transformation and the right partnerships
The BHB project serves as a role model, particularly for medium-sized German machine builders. Thanks to close cooperation between partners who work seamlessly together, the company successfully drove forward its digital transformation at the right time. BHB contributes its many years of experience in plant engineering, ATINA provides software expertise, and Mitsubishi Electric supplies robust automation components.
The result is a tram washing system that meets the growing demand for sustainability, quality, and efficiency while showing how medium-sized machine builders can remain competitive and attractive to skilled workers by using digital technologies.
Videos:
This video provides insights into the new tram washing facility of the Zurich transport company, the technology installed there, and the digital solutions used: We offer three lengths of video material to meet different
requirements:
0:34 Minutes BHB Mini_youtube
1:32 Minutes BHB Midi_youtube
5:10 Minutes BHB Maxi_youtube
.
Images:

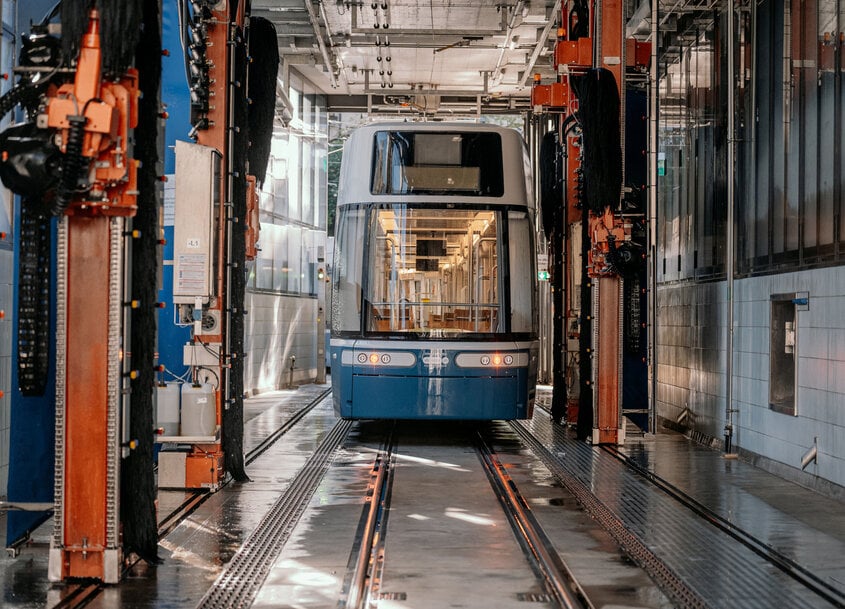

Image ME_BHB_01: The tram is parked in the wash hall for washing. The four wash cars move along the right and left sides of the vehicle.

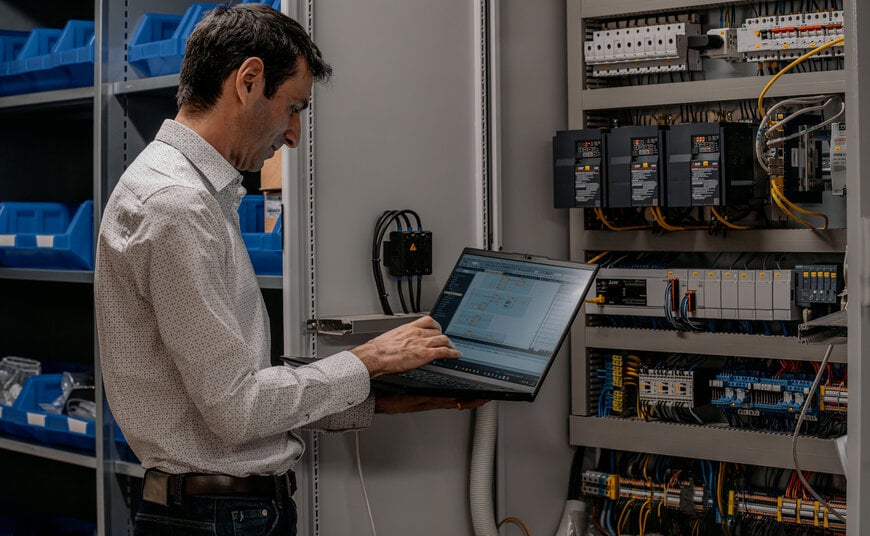

Image ME_BHB_02: Thanks to a digital twin, the washing system could be thoroughly tested at the desk. This drastically reduced the commissioning time.

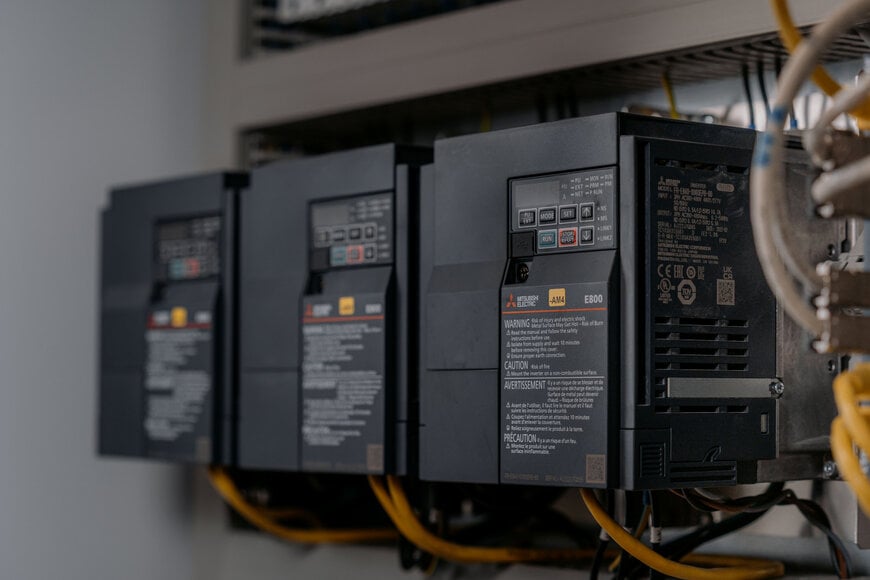

Image ME_BHB_03: Mitsubishi Electric's FR-E800 series frequency inverters enable energy-efficient control of brushes and pumps.

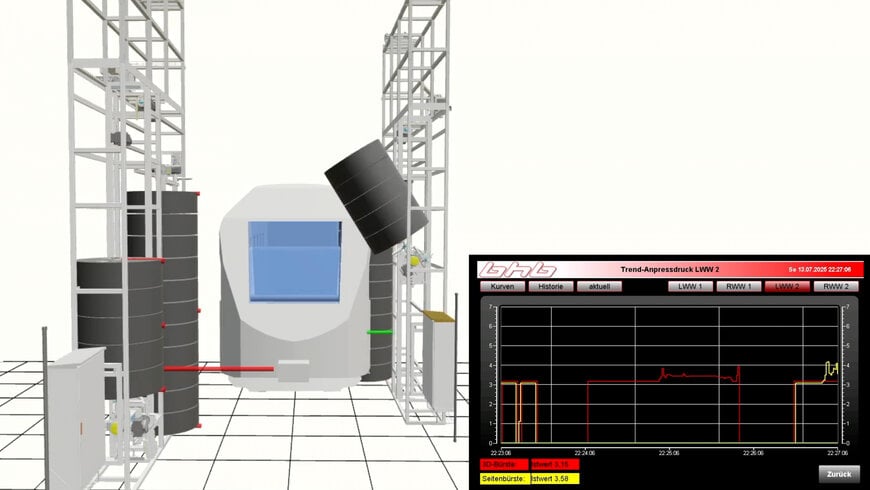

Image ME_BHB_04_Digital Twin: The washing system and vehicles are precisely replicated in the digital twin. The virtual model is controlled by a real Mitsubishi Electric PLC to ensure realistic simulation.

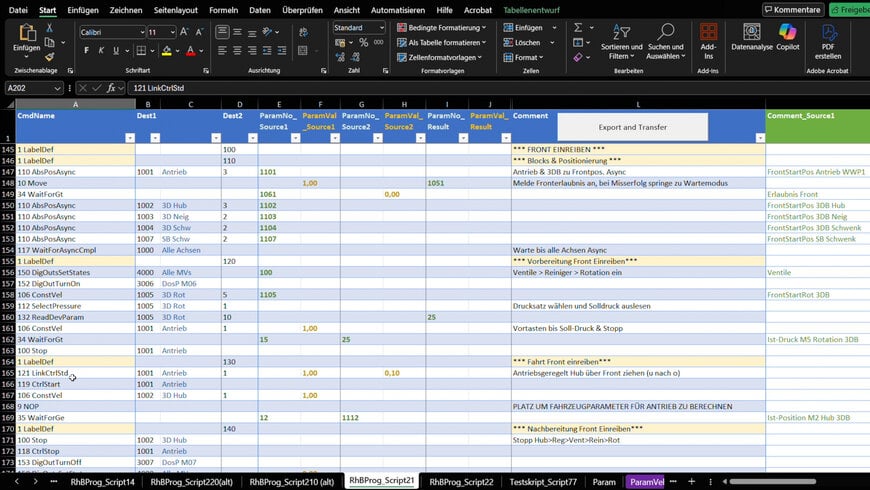

Image ME_BHB_07_Low Code: Excel instead of code: 200 lines instead of 4,000. Thanks to low-code programming, washing programs no longer need to be hard-coded. All you need to do is fill in an Excel spreadsheet.
